Configuration

Settings, keyboard shortcuts, validation and project configuration.

Toolkit Settings (0.5.2 preview)#

In the 0.5.2 preview, open Project > Settings > All settings for a dedicated Toolkit Settings tab. Search settings, filter by category or changed values, choose a sort order, and select User, Workspace or a supported folder scope before saving.

The tab uses VS Code's native settings storage. Drafts remain when switching views. Failed or stale saves report the problem rather than replacing a newer value. Each setting has a reset action. Detected paths, setup and validation actions stay close to the settings they affect.

The native VS Code Settings UI remains available. The reference below also applies to the published 0.5.0 release unless a feature is marked as preview.

Settings live under the px. prefix and are grouped in the VS Code Settings UI under Setup, Mods, Validation and Editor. The default answer to "what do I need to configure?" is: nothing. Open your mod folder(s), run Paradox: Run Setup & Health Check once (see Getting Started), and everything below is optional.

Paradox: Extension Settings (also in the Project panel's overflow menu) opens exactly these settings with the Workspace scope selected, which is where paths and toggles usually belong.

Coming from the old ck3.* settings? Every one of them moved to px.* in 0.3.0. See Upgrading.

Project controls (0.5.0)#

Project > Settings puts scope inlay hints, suggestion verbosity and hover detail beside the mod controls. Values update immediately, including when changed elsewhere. The controls update an existing workspace override; otherwise they use user settings. I've never created a mod in the tutorial turns on scope hints. Ordinary creation keeps the current preference.

All settings and the game header open native Settings filtered to the toolkit. Recent VS Code builds can show it briefly as a pop-up before the toolkit moves it into an editor tab. This does not change workbench.editor.useModal. Setting that VS Code preference to off removes the pop-up for other affected editors too, not only the toolkit.

Setup#

px.gameId picks the game. The three paths describe whichever game is active, are honored whenever you set them, and are auto-detected per game when left empty. All four are machine-scoped, so Settings Sync does not copy one computer's paths onto another.

Your own dumps match the engine vocabulary to your exact game version; bundled snapshots are used until you produce them. Launch the game with -debug_mode, run script_docs in the console (`), then run Paradox: Reload Game Data (script_docs).

Games without a tiger build (EU5) skip tiger integration entirely.

Mods#

Every workspace folder that is a mod of the active game is detected and indexed on its own. These settings cover the cases workspace folders cannot express. The paths are machine-scoped; px.locLanguage is not.

Validation#

Editor#

The calendar: the file first, the setting as fallback#

A mod declares its own display calendar in <mod>/.px-toolkit/calendar.json, which Paradox: Declare Calendar (Display Calendar) writes as an editable example. That file wins over px.calendar, is committed with the mod, and is read wherever the mod is opened, so a multi-mod window shows each mod's own dates and a bare LSP client needs no settings plumbing: the server reads the file itself. The file is validated against a schema as you edit it, and a date hover names which of the two the rule came from.

px.calendar is the fallback for a mod that has no such file. Same shape either way:

"px.calendar": { "epoch": 4000, "after": "AD", "before": "BC" }

epoch is the script year displayed as year 1 of the later era, after labels years from the epoch on, before labels the years underneath it (omit before for a single-era calendar, and give the two eras different labels). An optional months array of twelve strings gives the engine's months your own names: ["Narvinye", "Nenime", …]. Paradox: Generate Calendar Localization writes the matching game-side loc, era math plus date-format overrides, into the mod.

The setting is window-scoped, which decides where it goes. VS Code reads a .vscode/settings.json only when that exact folder is the one you opened, so a calendar declared inside a mod subfolder (<project>/mod/.vscode/settings.json) is ignored and every calendar feature silently stays off. When the toolkit finds such a stray declaration it warns once per workspace and offers Move Into Mod, which writes the calendar file where it counts, alongside a button that opens the ignored settings file.

The Workshop listing folder#

px.workshop.dir resolves against the mod's content folder (absolute paths work too). Left empty it resolves to .px-toolkit/workshop inside the mod, which a toolkit upload leaves out, or to an existing workshop folder next to the mod, which is the <project>/mod plus <project>/workshop layout px.modProjectsDir creates.

The folder is the store the Workshop panel reads and writes: description.bbcode, item.json, dependencies.json, one translations/<language>/ folder per translation with its title.txt and description.bbcode, and previews/ for the gallery. Without it, drafts stay in the mod's workshop.json, and Edit file in the panel creates the folder from those drafts. Paradox: Move Workshop Listing moves it between the two layouts.

One trap in the sibling layout: if your mods live directly in the game's Documents mod folder, every one of them resolves ../workshop to the same path and the listings overwrite each other. The panel warns before creating a folder there.

px.workshop.changelog resolves against the workshop folder (absolute paths work too) and accepts three shapes:

• A folder (the default changelog): the file named after the descriptor's version wins, so 1.2.md, v1.2.bbcode or 1.2.txt.
• A single file with headlines: the section under the headline containing the version, so ## 1.2.0 in Markdown or [h2]1.2.0[/h2] in BBCode.
• A single file without headlines: the whole file.

Markdown is converted to Steam BBCode on the way up (Steam BBCode lists what each construct becomes). The panel's Changenote card offers four sources, Changelog, Release (the newest GitHub release's notes, through gh), Last commit and Write, and the one you pick is what uploads. See Steam Workshop.

The per-mod config folder, .px-toolkit/#

One folder per mod holds everything the toolkit keeps beside your content, on every game: playset.json (parent mods), schema.json (folder-to-kind overrides), calendar.json (the display calendar), tiger-baseline.json, the generated tiger conf (ck3-tiger.conf, vic3-tiger.conf), the GUI preview values, workshop.json and, by default, the workshop/ listing folder.

It replaces the per-game .ck3modding/, .vic3modding/ and .eu5modding/ folders. Existing folders keep working and are renamed the first time the toolkit writes to them. A toolkit upload always leaves .px-toolkit/ out, so your validator settings and listing drafts stay local. See Multi Mod and Translation for what each file does, and Upgrading for the rename.

Launch configurations#

Running the game is configured in .vscode/launch.json, not in settings. A paradox-game launch configuration takes one field, args, the options passed to the game (default ["-debug_mode", "-develop"]), and the extension ships snippets for the common ones. See Running the Game.

Default keybindings#

Thirteen chords are bound out of the box, all rebindable like any VS Code shortcut and all inert outside a Paradox workspace or file type. Paradox: Keyboard Shortcuts (this extension), also in the Project view menu, opens the Keyboard Shortcuts UI filtered to this extension.

Ctrl+Alt+<letter> is AltGr on many European layouts (AltGr+L types ł, AltGr+O types ó), which is why the set stays small and avoids the letters that produce characters you type often. Everything else keeps its button and palette entry. The two BBCode chords deliberately match VS Code's Markdown preview keys and only apply inside a .bbcode file.

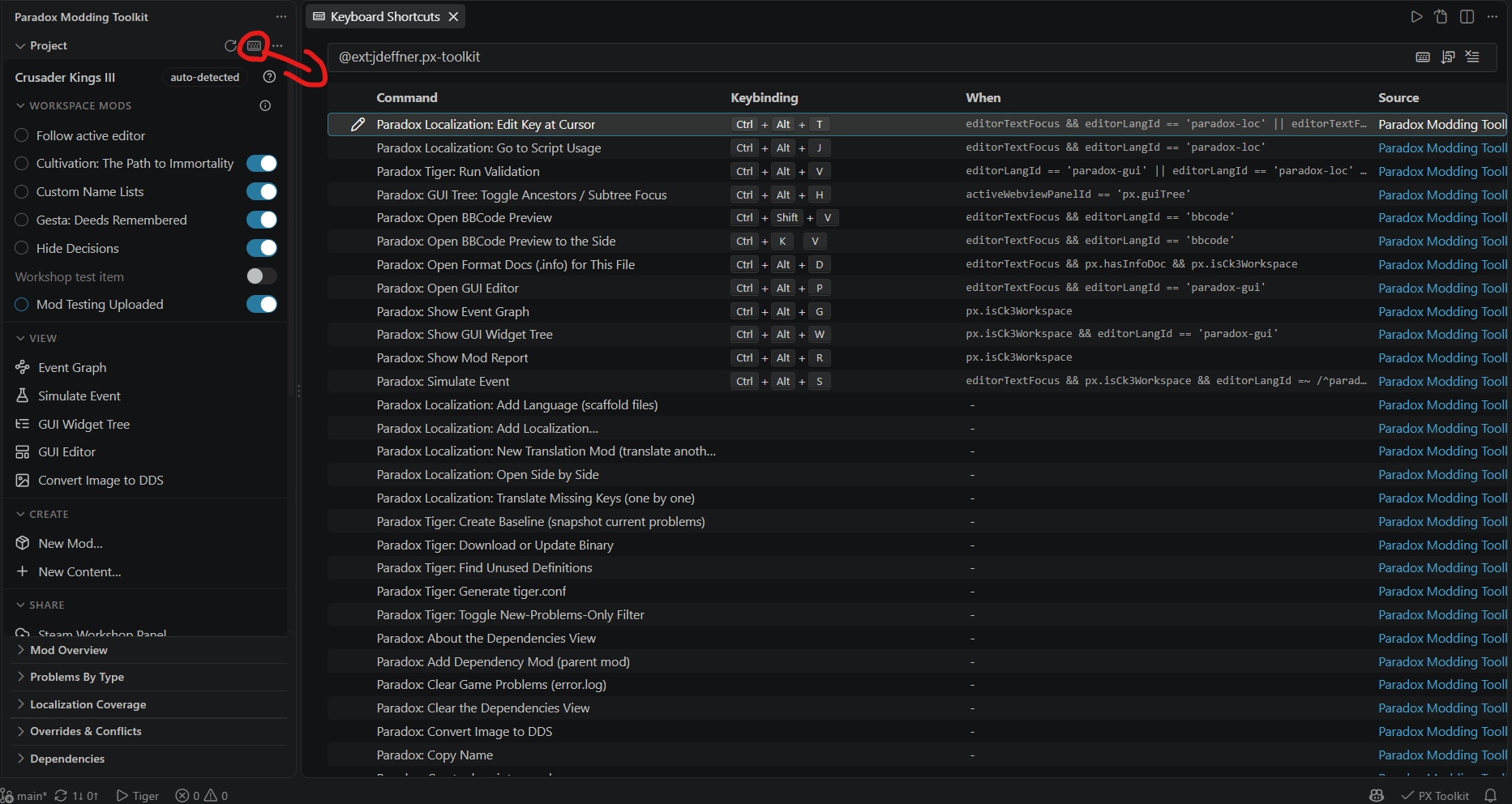

To see and rebind the rest, open the Keyboard Shortcuts editor filtered to @ext:jdeffner.px-toolkit. Use Paradox: Keyboard Shortcuts (this extension) to open that filtered view.

Enlarge image

Inline diagnostic suppression#

To silence a diagnostic on a single line without changing any setting, use a comment:

• # px:ignore <code...> on the offending line, or
• # px:ignore-next-line <code...> on the line above it.

A bare # px:ignore (no code) suppresses every diagnostic on the line, and you can list several codes after the keyword. A trailing -- <reason> is allowed and ignored, so the comment documents itself:

trigger_event = agot_dragon.0031   # px:ignore unknown-event -- defined by the base mod

This works for both the toolkit's own structural checks and tiger's forwarded reports. A code is either one of the codes below or a tiger report key. Malformed comments and bad setting values are ignored rather than treated as errors.

The marker changed in 0.3.0. # ck3m:ignore comments no longer suppress anything; the codes themselves are unchanged, so a find-and-replace of the marker is the whole migration. See Upgrading.

Diagnostic codes#

The toolkit's own structural diagnostics carry a stable code. They target the silent-failure class: mistakes that make the game quietly ignore your content with no error output anywhere. The source label is per game (ck3-script, vic3-script, eu5-script).

Mod descriptors get their own checks under the source px-descriptor:

Every code above has a page of its own, with the in-game consequence, why it happens and how to fix it. Read them inside VS Code from the Wiki row in the Project panel, or in docs/diagnostics/ in the repository.

Anything deeper than structure is tiger's job, by design. Its reports carry tiger's own keys (unknown-field and friends) and suppress the same way.

Diagnostics from the running game#

While the error.log watcher is on, the game's own script errors appear as Problems with the source ck3-game / vic3-game / eu5-game. Those deliberately survive stopping the watcher, so you can work through them with the game closed. Paradox: Clear Game Problems (error.log) removes them, and a "Clear Game Problems (N)" row appears in the Project view while there is something to clear.
